General assembly of kompaktsauger press line

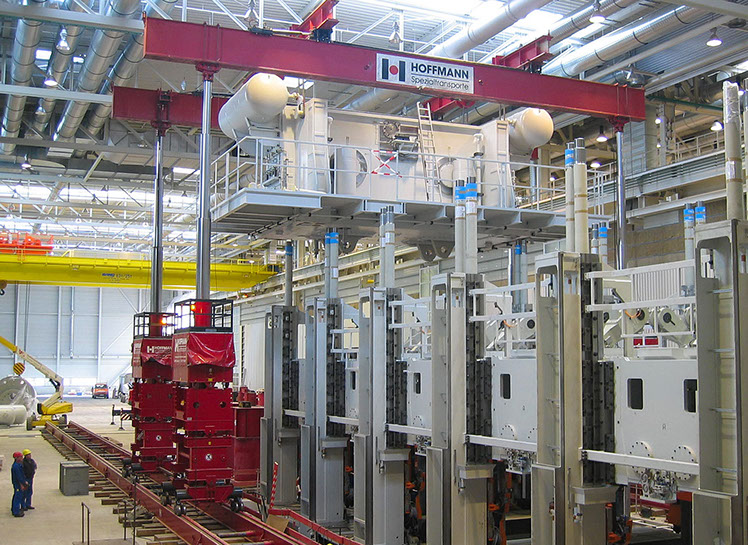

IIn conjunction with a production expansion scheme carried out at the Audi Works in Ingolstadt we were commissioned to erect a Kompaktsauger press line. Our hydraulic gantry was set up with a track length of 80 m, a span of 13 m and a hoisting height of approx. 15 m.

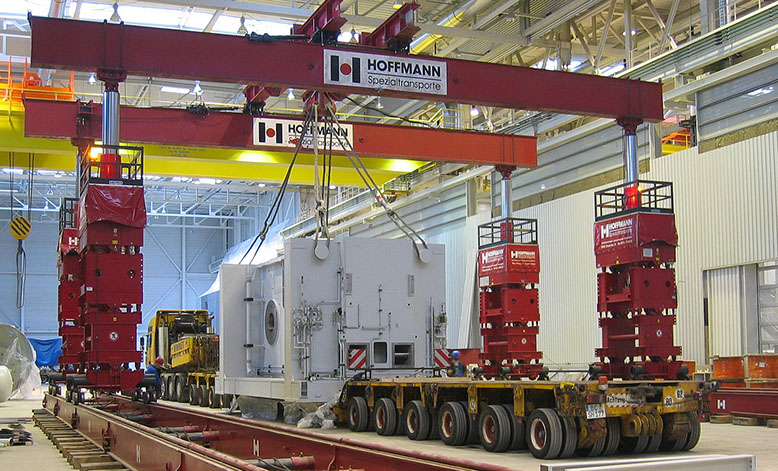

The individual subassemblies were unloaded directly beneath the gantry in the front part of the building by means of a heavy transport vehicle then conveyed to the machine foundations where they were assembled in position. Assembly of this press line – consisting of 6 individual presses with 18 heavy components weighing up to 390 t – underwent completion within a period of two months.



Technical features:

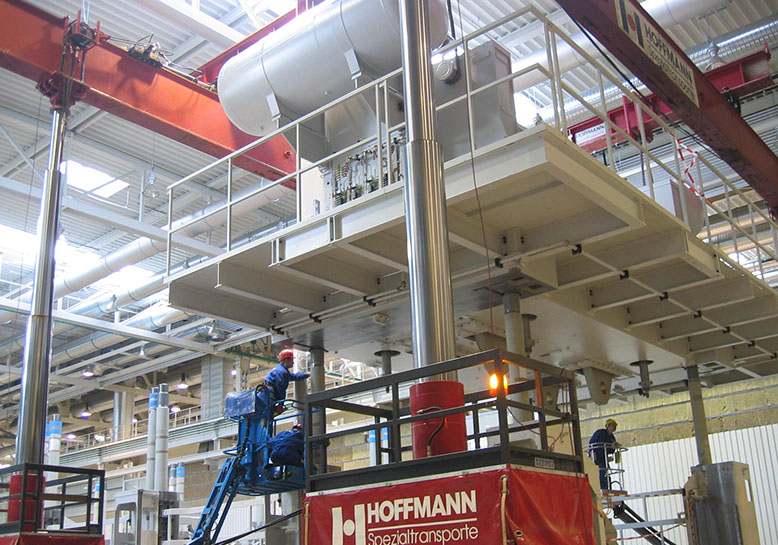

• Max. hoisting height of gantry 15 m with 500 t lifting force.

• Max. unit weight – headpiece 390 t max.

• Anchorage and side-stand assembly at a height of 15 m by means of truck-mounted cranes.
